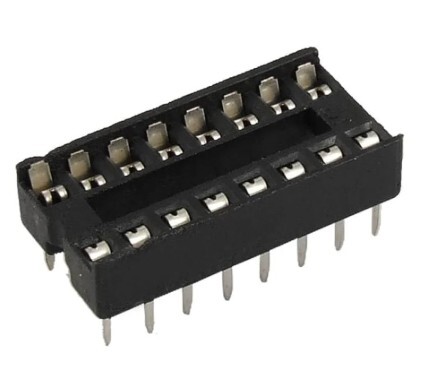

IC SOCKET 16PIN IC SOCKET
16PIN IC SOCKET
IC SOCKET CONNECTOR FOR INTEGRATED CIRCUIT
NGN150.00
Share :
Product Details
The IC Socket with 16 pins is a precision-molded, dual-in-line (DIP) socket designed to house integrated circuits (ICs) with 16 pins. It provides a reliable and convenient way to mount ICs on a printed circuit board (PCB) without soldering the IC directly, allowing for easy replacement and reusability. The socket ensures a secure and stable connection while protecting the IC from potential damage during assembly or troubleshooting. Key Features:
- Accommodates ICs with 16 pins in a dual-in-line package (DIP)
- Facilitates easy insertion and removal of ICs
- Precision-molded body for reliable and stable connections
- Tin-plated or gold-plated contacts for excellent conductivity and corrosion resistance
- Low insertion force for easy handling
- Compatible with standard PCBs
- Available in various heights and profiles to suit different applications
- Number of Pins: 16
- Pin Pitch: 2.54mm (0.1 inches)
- Contact Material: Tin-plated or gold-plated contacts
- Body Material: High-temperature thermoplastic
- Operating Temperature Range: -40°C to +105°C
- Dimensions: Varies by manufacturer (common size: 35mm x 10mm x 5mm)
- Mounting Type: Through-hole
- Prototyping and development of electronic circuits
- Easy replacement and upgrading of ICs
- Protecting ICs from heat damage during soldering
- Ensuring reliable connections in electronic devices
- Use in educational and hobbyist projects
- Insert the IC socket into the PCB aligning the pins with the corresponding holes.
- Solder the socket pins to the PCB, ensuring proper connection.
- Insert the IC into the socket, ensuring correct orientation.
- Press the IC gently but firmly to secure it in place.
- Ensure correct orientation of the IC when inserting into the socket.
- Handle the IC and socket carefully to avoid bending or damaging the pins.
- Verify all connections before powering the circuit.
