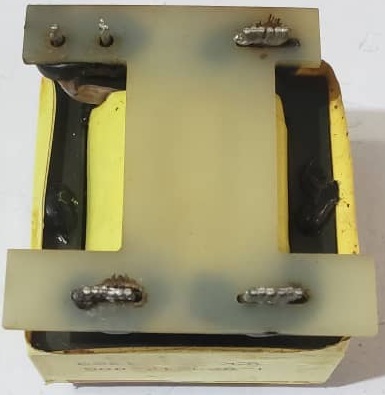

24VDC TO 450VDC BOOST EE55 FERRITE TRANSFORMER 2KW(USED)

This specification describes the high-voltage boost stage of a 2kW industrial-grade inverter. At this power level, the current involved is massive; a 24V system delivering 2kW will pull over 83A continuous (and likely over 100A peak).

The EE55 ferrite core is one of the few standard cores large enough to handle this energy without saturating, provided the winding and frequency are optimized.

Technical Specifications

• Topology: Push-Pull (Center-tapped primary) is the standard for 24V systems.

• Switching Frequency:40kHz to 80kHz (higher frequencies reduce core size but increase switching losses).

• Target Output:350V to 450V DC (The "High Voltage DC Bus").

• Estimated Efficiency:90%–95%.
