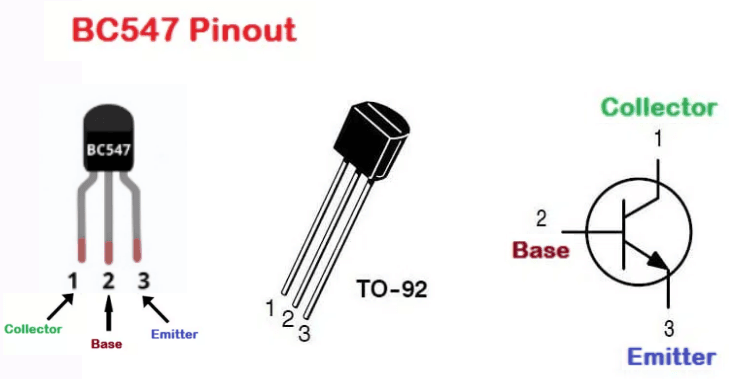

BC547 NPN TRANSISTOR

The BC547 is a ubiquitous NPN Bipolar Junction Transistor (BJT), often used in low-power signal processing and switching applications.

Its core details are:

·        Type: NPN Silicon Epitaxial Planar Transistor.

·        Package:TO-92 (Through-hole).

·        Maximum Collector Current (100 mA.

·        Maximum Collector-Emitter Voltage V_CE:45 V.

·        Maximum Power Dissipation P_D:500 mW.

·        DC Current Gain h_FE): High gain, typically 110 to 800

It is mainly used for amplification of small signals, general-purpose low-power switching, and in oscillator circuits
