CD4017
Share :

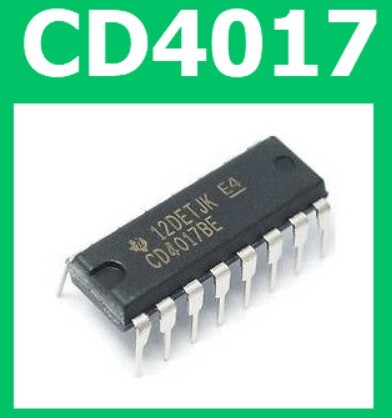

The CD4017 is a 16-pin CMOS integrated circuit (IC) that functions as a decade counter/divider with 10 decoded outputs.
It's widely used in electronic circuits that require sequential operation, counting, or frequency division.
Key Features and Operation
Decade Counter: The IC counts from 0 to 9. It uses a Johnson counter structure, which has the advantage of having only one output active (HIGH) at any given time, making decoding simple.
Decoded Outputs: It has ten outputs, labeled Q_0 through Q_9. With each clock pulse, the active output sequentially shifts from Q_0 up to Q_9, and then cycles back to Q_0. Only the current count's output pin is HIGH; all others are LOW.
Clock Input (Pin 14 - CLK): The counter advances by one step on the rising edge (low-to-high transition) of the clock pulse applied to this pin.
Clock Inhibit (Pin 13 - CI/CLK EN):
When this pin is LOW (grounded for normal operation), the counter is enabled and responds to the clock pulses.
When this pin is HIGH, the counter is disabled, and the count will hold at its current state regardless of clock pulses.
Reset (Pin 15 - MR):
When this pin is momentarily pulled HIGH, the counter immediately resets, and the output Q_0 becomes HIGH (count = 0).
For normal counting operation, this pin must be held LOW (grounded). This pin can also be connected to any of the outputs (Q_1 to Q_9) to create a counter that counts up to a specific number (a "divide-by-N" counter). For example, connecting Q_6 to the Reset pin makes it count from 0 to 5, and then reset.
Carry Out (Pin 12 - CO): This pin goes HIGH after the counter completes a full cycle of 10 clock pulses (specifically, it is LOW for Q_0 through Q_4 and HIGH for Q_5 through Q_9). It is typically used to cascade multiple CD4017 ICs to count higher than 10.
Supply Voltage: It supports a wide supply voltage range, typically from 3V to 15V (or up to 18V for some variants).
Common Applications
Due to its sequential output nature, the CD4017 is often used in:
Sequential LED Light Circuits: Also known as LED Chasers or "Knight Rider" lights.
Frequency Division: It can divide an input frequency by a factor of 10, or less if the reset pin is used.
Timing Circuits and Control Circuits.
Pin Configuration (Summary)
| Pin No. | Name | Description |
| 16 | V_DD | Positive Power Supply (3V to 15V) |
| 8 | V_SS (GND) | Ground (0V) |
| 14 | CLK | Clock Input (Positive-edge triggered) |
| 13 | CI/CLK EN | Clock Inhibit/Enable (LOW to enable counting) |
| 15 | MR | Master Reset (HIGH to reset to Q_0) |
| 12 | CO | Carry Out (Used for cascading) |
| 3 | Q_0 | Decoded Output 0 |
| 2 | Q_1 | Decoded Output 1 |
| 4 | Q_2 | Decoded Output 2 |
| 7 | Q_3 | Decoded Output 3 |
| 10 | Q_4 | Decoded Output 4 |
| 1 | Q_5 | Decoded Output 5 |
| 5 | Q_6 | Decoded Output 6 |
| 6 | Q_7 | Decoded Output 7 |
| 11 | Q_8 | Decoded Output 8 |
| 9 | Q_9 | Decoded Output 9 |
Learn more about building a simple circuit with this IC by watching this CD4017 Decade Counter YouTube tutorial.
