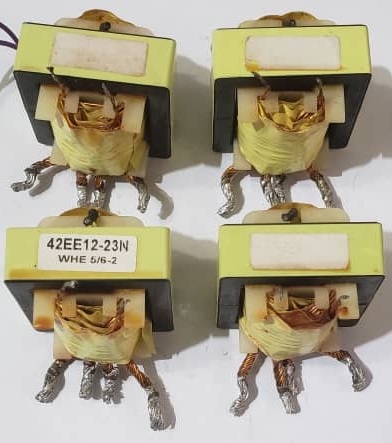

POWER ELECTRONICS EE42 FERRITE 12V TO 350V BOOST FOR INVERTER 500W(USED)



EE42 FERRITE 12V TO 350V BOOST FOR INVERTER 500W(USED)
USE IN HIGH-FREQUENCY INVERTER BOOST STAGE
NGN8,000.00 NGN8,500.00
Share :
Product Details
This specification describes a high-frequency DC-DC boost stage, the "front end" of a high-power inverter. Using an EE42 (or EER42) ferrite core is a popular choice for 500W–600W designs because it offers a large enough cross-sectional area to handle the high current of a 12V system without saturating.
Core Specifications for 500W
Core Type: EE42/21/15 (or EER42 with a round center leg for easier winding).
Material: PC44 or MnZn PC40 Ferrite (High-frequency, low-loss material).
Topology: Typically Push-Pull (12V battery inputs).
Frequency: Usually operated between 40kHz and 100kHz.
