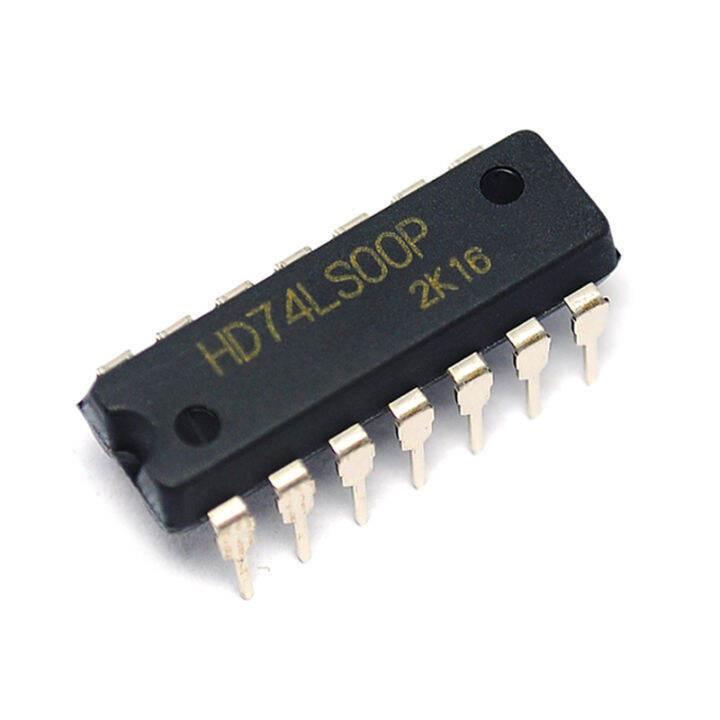

HD74LS00P NAND GATE

The HD74LS00P is a component from the widely used 74LS (Low-Power Schottky) logic family and is completely different from the power components discussed in the Canvas. It is an extremely common Quad 2-Input NAND Gate integrated circuit.

Here are its core specifications:

• Type: Logic Gate / Digital Integrated Circuit (IC).

• Function: Contains four independent 2-input NAND gates. The output is low only if all inputs are high.

• Family:LS (Low-Power Schottky), meaning it offers higher speed than standard TTL while consuming less power.

• Supply Voltage (V_CC): Typically 5.0V.

• Package: Standard 14-pin Dual In-line Package (DIP) (the 'P' suffix often denotes DIP).

• Relevance to Inverter/Safety: This chip is not a power component but a control component. It would be used in the low-voltage control board for basic logic functions, such as:

  • Dead-time generation: Creating a delay between the turn-off of one switch and the turn-on of its complement to prevent short-circuits (a critical safety feature related to the 120C protection).

  • Simple lockout logic: Implementing basic interlocks to ensure the inverter operates under safe conditions.
