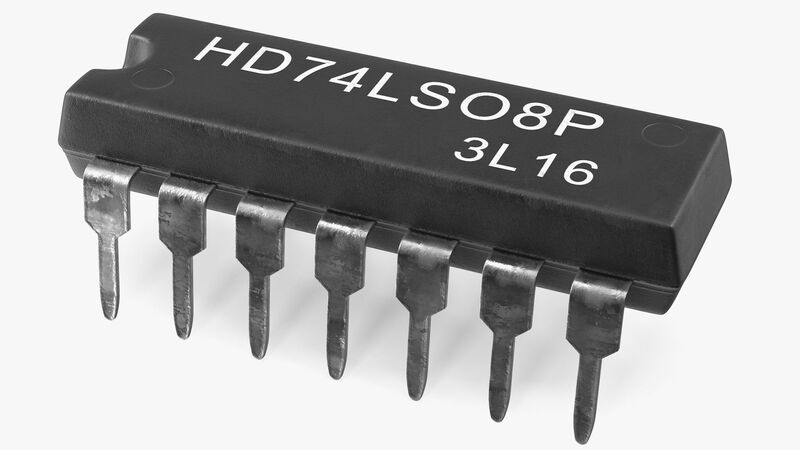

HD74LS08P AND GATE

The HD74LS08P is a common digital integrated circuit, specifically a Quad 2-Input AND Gate from the 74LS (Low-Power Schottky) logic family.

Here are its core specifications and relevance:

• Type: Logic Gate / Digital Integrated Circuit (IC).

• Function: Contains four independent 2-input AND gates. The output is high only when both inputs are simultaneously high.

• Family:LS (Low-Power Schottky), offering a balance of speed and power consumption at a standard 5V supply voltage.

• Supply Voltage (V_CC): Typically, 5.0V

• Package: Standard 14-pin Dual In-line Package (DIP) (the 'P' suffix often denotes DIP).

• Relevance to Safety/Compliance: This chip would be used in the low-voltage control circuitry to implement enabling and interlocking logic crucial for meeting the Canvas's compliance and protection mandates:

  • Enable Logic: An AND gate ensures that the system only runs when two or more prerequisite conditions are met (e.g., "Microcontroller is ready AND no fault is present").

  • Thermal Interlock: It could be used to ensure the inverter's main drive signal is only passed to the gate drivers (like the IR2112) when the thermal protection signal (indicating the core temperature is below 120C) is active
