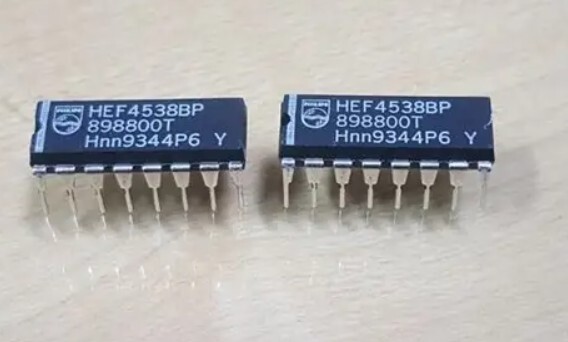

HEF4538BP MUTIVIBRATOR

The HEF4538BP is a widely used digital integrated circuit, specifically a Dual Precision Monostable Multivibrator (One-Shot Timer) from the HEF4000 (CMOS) logic family. It is a control component, highly effective for generating precisely timed pulses crucial for safety sequencing.

Here are its core specifications and relevance:

• Type: Dual Monostable Multivibrator / One-Shot Timer.

• Function: Contains two independent, retriggerable, and resettable timing circuits. It outputs a pulse of a precise duration determined by an external resistor (R) and capacitor (C).

• Family:HEF4000 Series (CMOS), offering extremely low power consumption and a very wide operating voltage range.

• Supply Voltage (V_DD): Wide range, typically 3V to 15V.

• Package: Standard 16-pin Dual In-line Package (DIP) (the 'BP' suffix often denotes DIP).

• Relevance to Safety/Compliance: This chip would be used in the low-voltage control board to implement timing critical to the inverter's safety features:

  • Fault Pulse Stretching: Generating a long, clean pulse from a momentary fault signal (like the thermal trip above 120C) to ensure the microcontroller or fault-latching circuitry reliably registers the event and executes a controlled shutdown, thus satisfying the Protection requirement.

  • Dead-time Pulse: While often integrated into gate drivers (like the IR2112), the 4538 can be used to generate precise, non-overlapping gate drive signals to prevent short-circuits (shoot-through), which is fundamental to system Isolation integrity and long-term compliance.

  • Power Sequencing: Creating the time delays required during power-up or power-down to ensure voltage rails and stages are activated in a safe, controlled order.
