Product Details

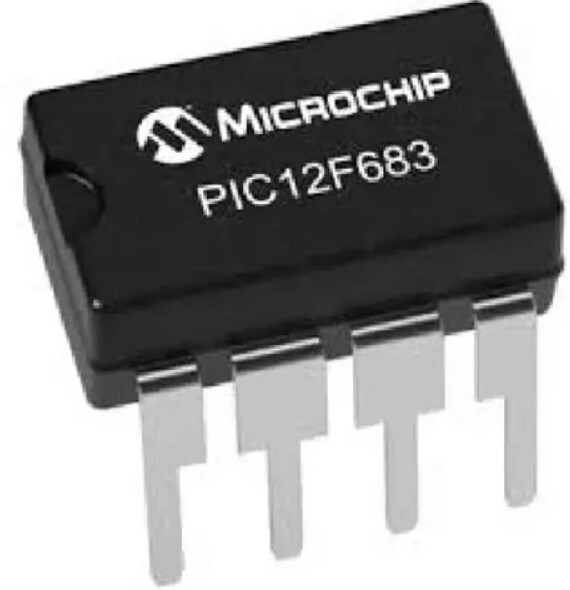

The PIC12F683 is a compact, 8-bit microcontroller from Microchip Technology's mid-range PIC family, known for its small form factor and rich feature set within an 8-pin package. It is frequently used in projects where size and a limited number of I/O pins are critical constraints, such as small sensor applications, remote monitoring, and embedded control.
Key Features Summary
| Feature | Specification | Notes |
| Architecture | 8-bit RISC CPU | Uses the mid-range PIC core with only 35 single-word instructions. |
| Pin Count / I/O | 8 pins / 6 I/O | The small size makes it ideal for space-constrained designs. |
| Program Memory | 3.5KB Flash | 2048 times 14 words |
| Data Memory | 128B RAM, 256B EEPROM | EEPROM for non-volatile storage of configuration data. |
| Max Speed | 20 MHz | Clock input/internal oscillator. |
| Operating Voltage | 2.0V to 5.5V | Wide operating range suitable for various battery and power supplies. |
| Internal Oscillator | Software-selectable | Adjustable from 8 MHz to 125 kHz. |
| Analog-to-Digital (ADC) | 4-channel, 10-bit | High-resolution for interfacing with analog sensors. |
| Peripherals | 1 CCP module (Capture/Compare/PWM) | Allows for precise timing and PWM signal generation for motor control or dimming LEDs. |
| Timers | Two 8-bit and one 16-bit | Versatile timing and counting capabilities. |
| Other | Analog Comparator, Watchdog Timer, In-Circuit Serial Programming (ICSP). |
Pin Configuration (8-Pin PDIP/SOIC Package)
The PIC12F683 utilizes its few pins efficiently, with most I/O pins being multiplexed to serve multiple functions (e.g., General Purpose I/O, ADC input, Timer clock input, etc.).
| Pin No. | Name | Primary Function | Alternate Functions |
| 1 | V_DD | Positive Power Supply | |
| 2 | GP5 | General Purpose I/O pin 5 | T1CKI (Timer 1 Clock Input), OSC1/CLKIN |
| 3 | GP4 | General Purpose I/O pin 4 | AN3 (Analog Input 3), OSC2/CLKOUT |
| 4 | GP3 | General Purpose I/O pin 3 | MCLR, V_PP (Master Clear Reset / Programming Voltage) |
| 5 | GP2 | General Purpose I/O pin 2 | AN2 (Analog Input 2), INT (External Interrupt), COUT (Comparator Output) |
| 6 | GP1 | General Purpose I/O pin 1 | AN1 (Analog Input 1), CIN (Comparator Inverting Input), ICSPCLK |
| 7 | GP0 | General Purpose I/O pin 0 | AN0 (Analog Input 0), CIN (Comparator Non-Inverting Input), ICSPDAT |
| 8 | V_SS | Ground |
