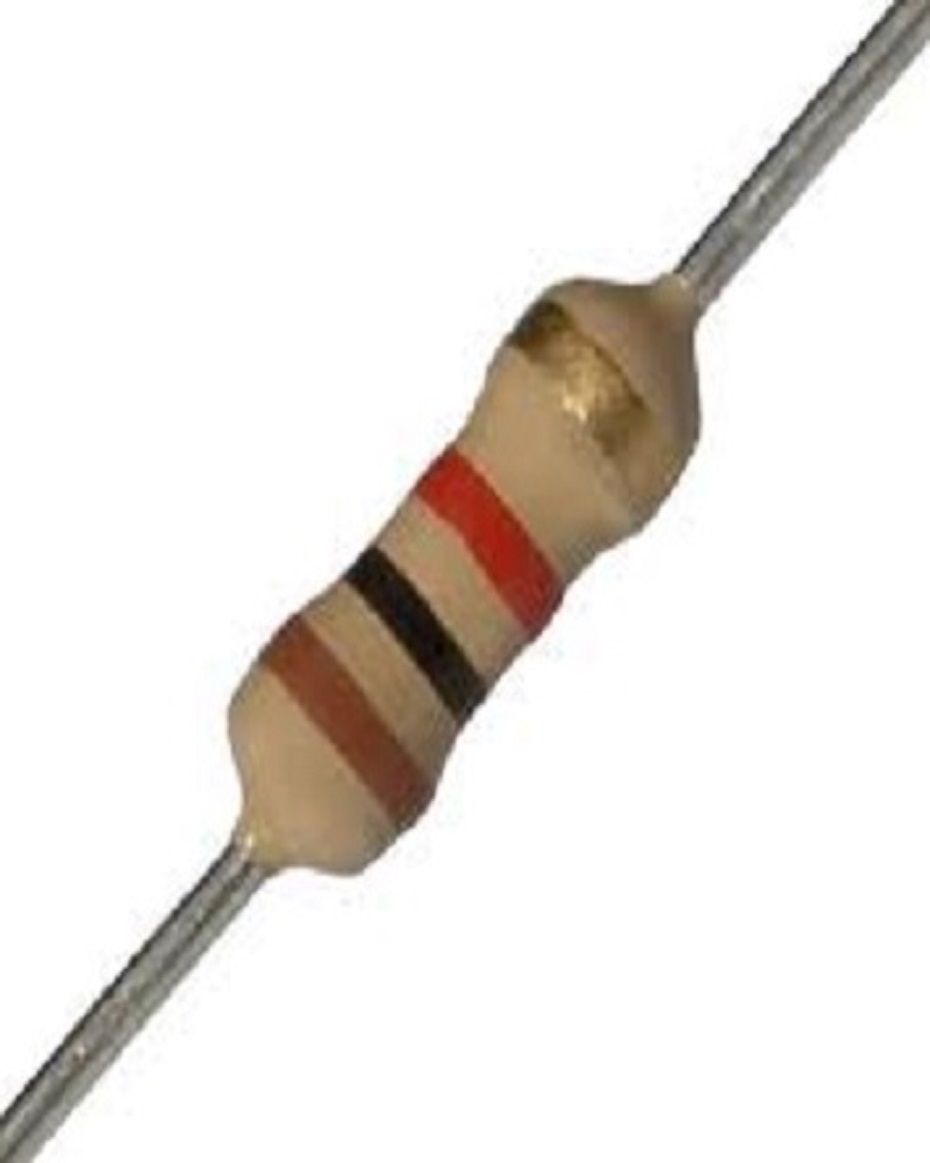

1k Resistor

The 1k 1/4W resistor is a fixed resistor used in various electronic circuits for current limiting, voltage division, and biasing. With power rating of 0.25 watts, it is ideal for a wide range of low-power applications.

• Power rating:1k 1/4 watt (0.25W)

• Tolerance: ±5% (standard) or ±1% (precision)

• Type: Fixed resistor

• Lead type: Axial leads for through-hole mounting

Technical Specifications:

• Power Rating: 0.25W

• Tolerance: ±5% (standard), ±1% (precision)

• Operating Temperature Range: -55°C to +155°C

• Temperature Coefficient: ±200 ppm/°C (typical)

• Package Type: Axial through-hole

Applications:

• Voltage dividers

• Biasing of active devices

• Signal conditioning

• Pull-up/pull-down resistors

• Filtering applications

Usage:
1.    Determine the required resistance value and power rating for your circuit.
2.    Solder the resistor into the circuit at the designated points.
3.    Ensure proper handling to avoid damaging the resistor.
4.    Verify connections and test the circuit.
