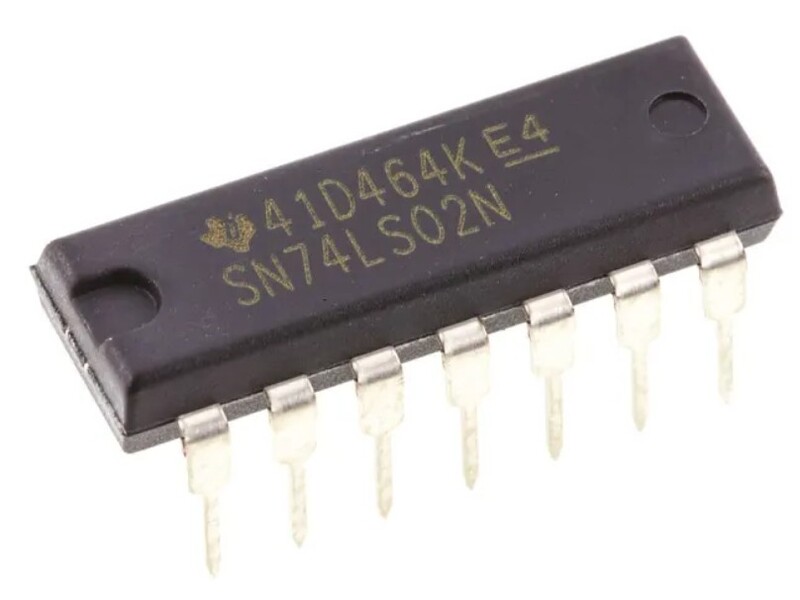

SN74LS02N NOR Gate

he SN74LS02N is a low-power digital integrated circuit, specifically a Quad 2-Input NOR Gate from the ubiquitous 74LS (Low-Power Schottky) logic family.

Here are its core specifications and relevance:

• Type: Logic Gate / Digital Integrated Circuit (IC).

• Function: Contains four independent 2-input NOR gates. The output is high only if both inputs are low.

• Family:LS (Low-Power Schottky), offering a good balance of speed and power consumption for older designs.

• Supply Voltage (V_CC): Standard TTL voltage of 5.0V

• Package: Standard 14-pin Dual In-line Package (DIP) (the 'N' suffix often denotes DIP).

• Relevance to Safety/Compliance: This chip would be used in the low-voltage control circuitry of the inverter. Its role is to implement basic Boolean logic for system control and protection, such as:

  • Fault Logic: Combining multiple fault signals (e.g., over-current, over-temperature) into a single shutdown signal.

  • Interlocking: Ensuring mutually exclusive operation of switching components to prevent bus shorts, which is crucial for preventing thermal runaway and meeting the 120C protection mandate.
