STM32 ST-LINK DOWNLOADER
Share :
The STM32 ST-LINK Downloader is a hardware tool used to program (flash) and debug microcontrollers from the STM32 family (manufactured by STMicroelectronics). It is an essential device for developing embedded applications using STM32 microcontrollers.
There are two primary forms this "downloader" takes:
1. ST-LINK/V2 and ST-LINK/V3 (Standalone Tools)
These are separate physical debugging probes that connect your PC to the target STM32 board.
Functionality: They act as an interface between the development software (like STM32CubeIDE) running on your computer and the STM32 chip.
Key Operations:
Flashing/Programming: Downloading the compiled code (firmware) from your PC onto the microcontroller's flash memory.
Debugging: Allows you to execute code step-by-step, set breakpoints, and examine the contents of registers and variables in real-time.
Connection Protocols: They primarily use one of two standard serial protocols:
SWD (Serial Wire Debug): The most common protocol, which requires only two signal pins (SWDIO and SWCLK) plus power and ground.
JTAG: An older, more complex protocol requiring more pins.
Versions:

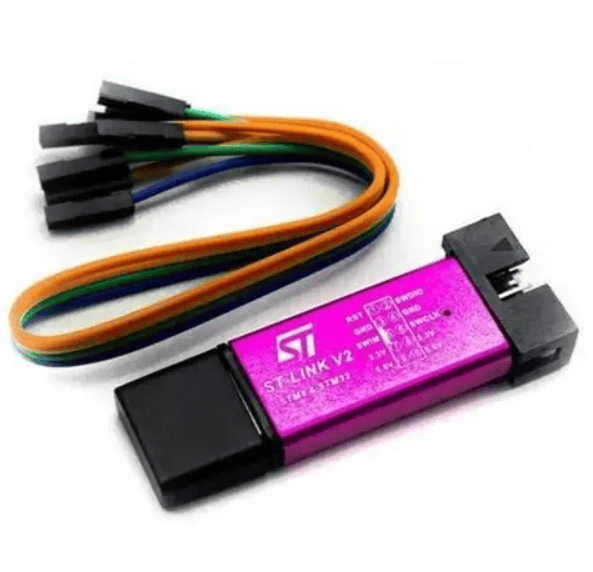

ST-LINK/V2: The older, widely used version, often available in a small stick-like form factor.
ST-LINK/V3: The newer generation, offering faster download speeds, more features (like mass storage support), and often a modular design.
2. On-Board ST-LINK (ST Discovery/Nucleo Boards)
Most official STM32 development boards (like the Nucleo and Discovery lines) come with an integrated ST-LINK circuit directly on the PCB.
Convenience: This eliminates the need for an external programmer. You simply plug a single USB cable from your PC into the development board, and the on-board ST-LINK handles the download and debug communication with the target MCU.
Re-use: The debugger section is often separated from the target MCU section by a jumper. This allows you to remove the jumpers and use the on-board ST-LINK to program a separate, external STM32 board if needed.
In short, the STM32 ST-LINK Downloader is the hardware bridge that makes code development possible by allowing you to put your compiled software onto the STM32 chip and test it.
