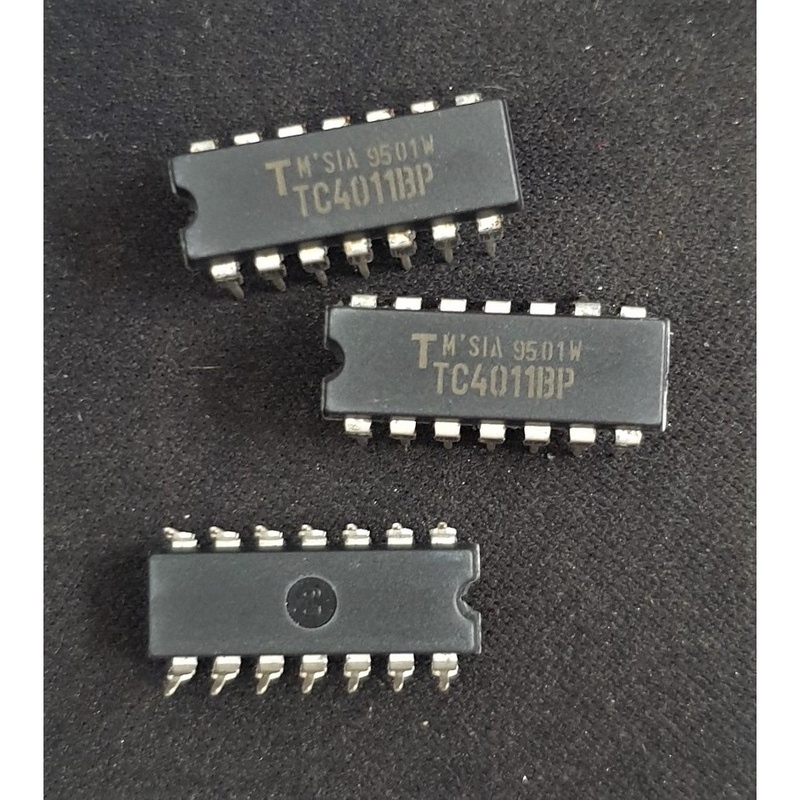

TC4011BP

The TC4011BP is a common CMOS digital integrated circuit (IC), part of the 4000 series of logic chips.

Its primary function is a Quad 2-Input NAND Gate.

• Function: It contains four independent NAND gates, each with two inputs. A NAND gate output is only LOW (0) when both of its inputs are HIGH.

• Technology: It uses CMOS (Complementary Metal-Oxide-Semiconductor) technology.

• Manufacturer: Typically manufactured by Toshiba (as indicated by the "TC" prefix) and other companies. It is electrically equivalent to the CD4011B and other variations.

• Package: The "BP" suffix often denotes a PDIP-14 (Plastic Dual In-line Package with 14 pins) package, designed for through-hole mounting.

• Supply Voltage: It has a wide operating voltage range, typically from 3 V to 18 V.
