Terminal Connector RV 5.5 - 6
Share :

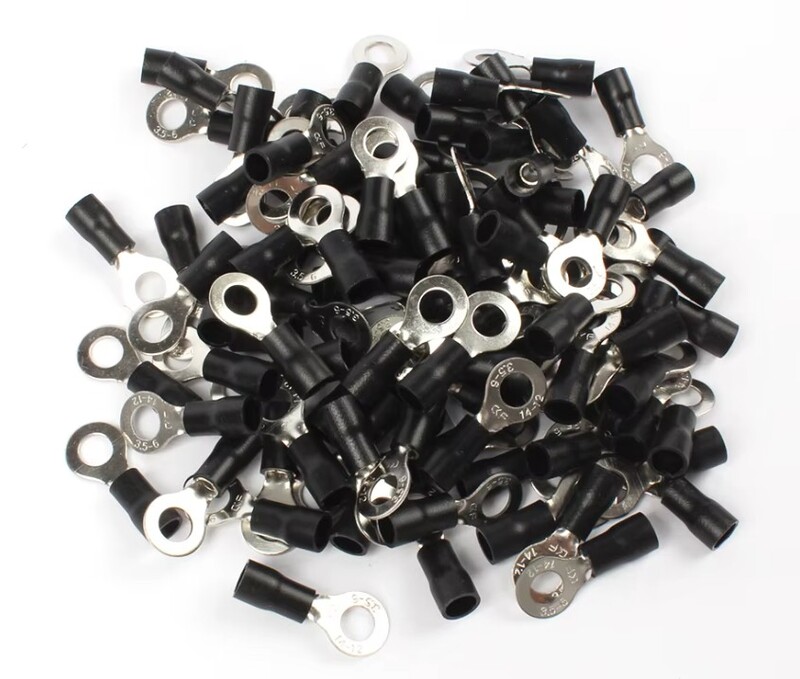

The RV 5.5 - 6 is an Insulated Ring Terminal designed for securing electrical conductors to screw or stud connections.
Its key characteristics are:
Cable Compatibility (RV \ 5.5): It is sized to accommodate stranded wire with a nominal cross-sectional area of 4.0 to 6.0mm^2 (approximately 12 to 10 AWG).
Stud/Screw Size (6): The ring opening is dimensioned for a 6 mm diameter stud or bolt.
Insulation: It features a vinyl or nylon flared sleeve, typically colored yellow for the 4-6^2 range, providing insulation and easy identification.
Material: The terminal ring itself is usually made of copper, which is tin-plated for corrosion resistance and optimal conductivity.
Function: Used primarily for reliable and high-vibration resistant termination of power cables onto bus bars, circuit breakers, or screw terminal blocks.
